UPC 029419969234
(W) Width (IN) 25.87
(D) Depth (IN) 33.37
(H) Height (IN) 38.25
(WL) Width between legs 17.5
(DL) Depth between legs 21.25
(W) Width (CM) 65.7
(D) Depth (CM) 84.8
(H) Height (CM) 97.2
(WL) Width between legs (CM) 44.5
(DL) Depth between legs (CM) 54

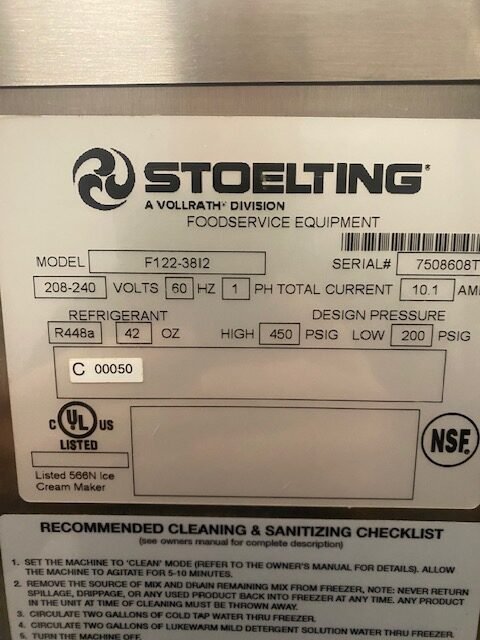

Electrical
Name Value
Frequency (Hz) 60
Hardwired Connection No
Hz 60
Phase 1
Plug NEMA 6-20P
Plug Connection Yes
Running Amps 10.1
Weight
Name Value
Weight (LB) 390
Weight (KG) 176.9
Construction
Name Value
Name Value
Cooling Air
Number of Drive Motors 2
Drive Motor (hp) 1/2
Number of Hoppers 2
Number of Freezing Cylinders 2
Air Flow Units require 6″ (15.24 cm) air space on both sides
Name Value
Hopper Capacity (GAL) 3
Hopper Capacity (L) 11.36
Total Hopper Capacity (GAL) 6
Total Hopper Capacity (L) 22.71
Freezing Cylinder Capacity (GAL) 2.12
Freezing Cylinder Capacity (L) 8.03
